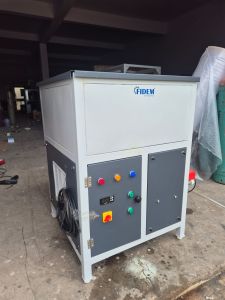

Injection Moulding Machine Water Chiller

Link Copied

75,000.00 / piece( + 18% GST applicable)

Edit

Business Type	Manufacturer, Exporter, Supplier, Retailer, Distributor
Size	Stander
Weight	100 KG
Driven Type	Stander
Click to view more

Product Details

Power Source

230V / 420 V , 50Hz

Temperature Range

7 To 25

Installation Type

stander

Control Type

Automatic

Usage

Molding machine

Packaging

stander

Dimensions

Stander

Brand

Fidem

Warranty

1 Year

Country of Origin

India

Port

Mundra

Payment Terms

L/C, T/T, Western Union, Other

Delivery Time

1 week

Packaging Details

special case in wooden packing ,

S.No.	Description	Technical Specification
1.	System	AircooledReciprocatingchiller
2.	Modelno.	FMACSR-2TRChiller
3.	Capacity	2TR
4.	Compressortype	Recip. (Emerson)
5.	Evaporatortype	BPHE (Alfa-Level )
6.	Condensertype	Aircooled, Finnedtubetype
		Fins – Aluminum – Coted
		Tube – Copper (Grooved )
7.	Refrigerant	R-407C
8.	Flowrate	1300 LPH
9.	Chilledwaterinlettemperature	As Per clients Deg.C
10.	Required Temp.	20 Deg.C
11.	Coolingfantype	Axialflowfan-Low noise
12.	Powerconsumption	3 KW , 4.6 – 5.2 Amps
13.	Powersupply	415+10%/50Hz+5%
14.	IPProtection	IP54
15.	Control	FullyAutomatic
16.	Safety	LP/HPGauge
		LP/HPSwitch
		Digitaltemperaturecontroller
		Voltagescannerfor UV/OV/SPP/RP
		Chilledwaterflowfailuretrip
17.	Chilledwaterpump	0.5 HP – SS-304, 1300LPHat2.5bar
18.	Chilledwatertank	100 Liter -insulatedstainlesssteel
